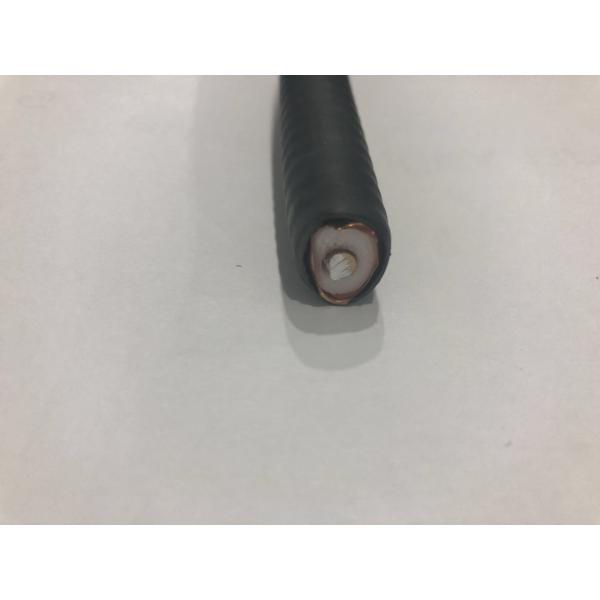

    Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable

    Ask Lasest Price
    Brand Name : ZD
    Model Number : 1/2 feeder cable
    Certification : CE RoHS
    Price : Negotiable
    Payment Terms : D/P, D/A, T/T, L/C, MoneyGram, Western Union
    Supply Ability : having stock
    • Product Details
    • Company Profile

    Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable

    Wide Frequency Range Copper aluminium 1 2 inch 1/2'' Super high Flexible RF feeder jumper Coaxial Cable

    Feature

     Wide Frequency Range
     Low Attenuation
     High Power Rating
     High Reliability

    Specification

    Mechanical Specifications
    Inner Conductor
    Copper clad aluminium wire Ø 3.6mm
    Dielectric
    Foamed polyethylene (PE) Ø 9.0mm
    Outer Conductor
    Annularly corrugated copper tube Ø 12.2mm
    Jacket
    PE, Black, UV resistant, Halogen free Ø 13.4 mm
    UV Resistance
    GB/T 14049-093; EN 50289-4-17, Method A
    Cable Weight
    ≈ 171 kg/km
    Tensile Strength
    750 N
    Min. bending Radius (Single)
    25 mm
    Min. bending Radius (Repeated)
    35 mm
    Number Of Bends, Minimum (Typical)
    20 (50)
    Flat plate Crush Strength
    15 N/mm
    Recommended Hanger Spacing
    0.8 m
    Electrical Specifications
    Impedance
    50±1 ohm
    Relative Velocity Of Propagation
    83%
    Capacitance
    80 pF/m
    Inductance
    0.195 μH/m
    Maximum Operating Frequency
    10.1 GHz
    Cut-off Frequency
    13.1 GHz
    Peak Power Rating
    16 kW
    Insulation Resistance
    ≥ 10 GΩ x km
    DC Breakdown Voltage
    2500V
    Jacket Spark Test Voltage
    5000 Vrms
    Inner Conductor DC-resistance
    ≤ 2.75 Ω/km
    Outer Conductor DC-resistance
    ≤ 3.69 Ω/km
    Environmental Specifications
    Installation Temperature
    -25°C to +60°C
    Operation Temperature
    -40°C to +85°C
    Storage Temperature
    -70°C to +85°C
    RoHs
    Compliant
    Attenuation, Ambient Temperature
    20°C
    Average Power, Ambient Temperature
    40°C
    Inner Conductor Temperature
    100°C
    Return Loss
    800 to 1000MHz
    ≤-26dB
    1700 to 1900MHz
    ≤-24dB
    1900 to 2200MHz
    ≤-24dB
    2200 to 2500MHz
    ≤-24dB
    2500 to 3000MHz
    ≤-24dB
