    3 / 8 ” To 4 - 7mm Rf Cable Clamps Without Additional Adapters To Support 2 Cables

    Ask Lasest Price
    Brand Name : zd
    Model Number : zd005
    Price : Negotiable
    Supply Ability : 100000 pcs per month
    Delivery Time : 3-15 days
    Certification : Rohs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    • Product Details
    • Company Profile

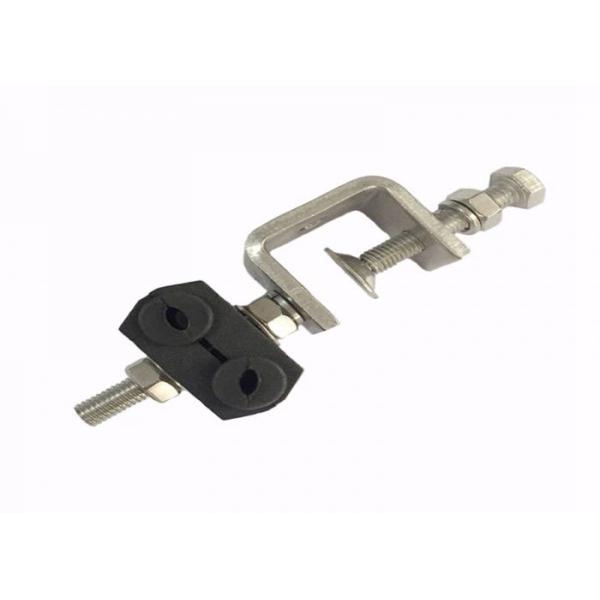

    3 / 8 ” To 4 - 7mm Rf Cable Clamps Without Additional Adapters To Support 2 Cables

    Feeder Clamp Through Type Feeder Clamp 3/8” to 4-7mm single run cable clamp


    The feeder clamps are simple and easy
    to assemble. Quality components are used to provide the
    reliability for years of trouble-free installations.
    High-grade clamps will not slip or become
    deformed when installed on feeder cables. Installation
    is made easy by the extremely simple operation of the
    clamps. The cable is laid in the clamp and the clamping
    trough is inserted. The trough automatically attaches to
    the clamp thus securing the cable. All feeder clamps
    troughs are made of PP. The metal parts of the clamps are made of stainless
    steel.


    Product Details

    • The clamp is designed to support 2 cables with the dimension of 4-7mm
    • It is installed on cable ladder, rung, bracket, i-beam, profile such as towers, ladders and masts at telecom site
    • Without additional adapters, provide study, reliable, long-time support
    • Each block holds two runs of cable to reduce installation cost
    • Easy-to-install
    • Wind loaded
    • UV and corrosion resistant with SUS304/steel dacro bracket
    • Capable to working in extreme temperature
    • Recommend distance of clamps: 0.8~1.0m

    Product Specifications

    Product Classification
    Product TypeDouble hole
    Specification
    Size3/8” to 4-7mm
    Compatible Diameter maximum10 mm | 3/8 in
    Compatible Diameter minimum4 mm | 0.16 in
    IncludesAngle adapter, plastic clamp, threaded rod, nuts,washer and rubber inserts
    Material of metal partStainless steel 304
    Material of plastic partPP/PA
    Cables per clamp2
    Salt spray test168 h
    Surface treatmentPassivated
    Warranty3 years
    Operating Temperature-40 °C to +85 °C (-40 °F to +185 °F)
    UV Resistance≥720 hours
    OEMAccepted
    ApplicationTelecom cable installation
    Packaging & Delivery
    Packaging DetailsPlastic bag, Carton, Pallet
    Delivery Time3-15 days
