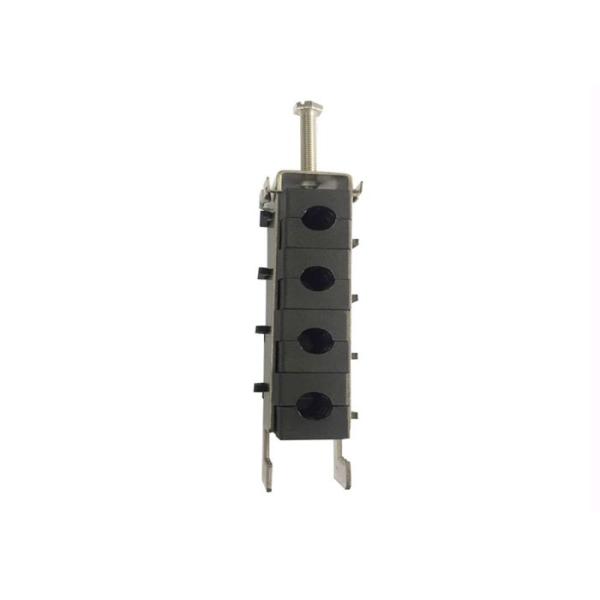

Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps

    Buy cheap Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps from wholesalers

    Buy cheap Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps from wholesalers
    • Buy cheap Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps from wholesalers
    • Buy cheap Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps from wholesalers

    Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps

    Ask Lasest Price
    Brand Name : zd
    Model Number : zd029
    Price : Negotiable
    Supply Ability : 100000 pcs per month
    Delivery Time : 3-15 days
    Certification : ROHS
    Payment Terms : D/P, T/T, Western Union, MoneyGram, D/A, L/C
    • Product Details
    • Company Profile

    Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps

    Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps


    Self-locking cable clamp is a type clamp an easy and quick fixation to various cables of:
    coaxial cables, wave guides, hybrid (power) and fiber optic cables.
    The cables will be firmly secured, without danger of deformation, by calibrated saddles which hold them without crushing.
    The installer can visually control the pressure plate by the screw (pat.).
    1 to 8 cables can be fixed with this type same clamp.
    The calibrated saddles, secured by a clip, can be inserted in the bow.

    • simple and strong structure
    • secured components with easy mounting
    • selected high quality ASIS304 & P.A.
    • resistance to atmospheric factors (U.V. rays, salty air conditions, a.s.o.)
    • high resistance to temperature variations (from -30°C to +120°C)
    Product Classification
    Product Typehook type
    Specification
    Size10-11mm
    Compatible Diameter maximum11 mm | 0.43 in
    Compatible Diameter minimum10 mm | 0.39 in
    Includesplastic clamp, threaded rod, nuts and steel frame
    Material of metal partStainless steel 304
    Material of plastic partPP/PA
    Cables per clamp4
    Salt spray test168 h
    Surface treatmentPassivated
    Warranty3 years
    Operating Temperature-40 °C to +85 °C (-40 °F to +185 °F)
    UV Resistance≥720 hours
    OEMAccepted
    ApplicationTelecom cable installation
    Packaging & Delivery
    Packaging DetailsPlastic bag, Carton, Pallet
    Delivery Time3-15 days

    Product Tags:

    rf cable clamps



    tower cable clamps


    Quality Feeder Clamp Hook Type Feeder Clamp 4 stacks 10-11mm self-locking cable clamps for sale
